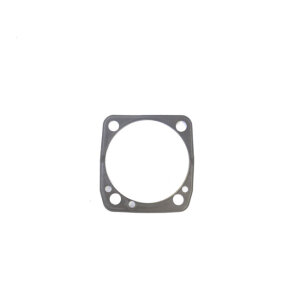

Athena, 3-5/8" cylinder base gasket set. FR/RR .020" RCS

Artikelnummer: 980866
Kategorie: Zylinder - Dichtungen
Hersteller: Athena

84-99 Evo Big Twin; 86-22 XL Sportster. With 3-5/8" big bore cylinders (NU) | Artikelzustand: NEU

31,95 €

inkl. 19% USt. , zzgl.

Auswahl Steuerzone / Lieferland

Sofort verfügbar
Lieferzeit: 2 - 5 Werktage (DE - Ausland abweichend)

Bei diesem Artikel ist die Stückzahl teilbar (z. B. 0,5).

Beschreibung

3-5/8" big bore. Front & rear gasket set. Type ''A'' gasket. .020" thick RCS (Rubber Coated Steel). Gasket with an embossed steel core with a .001" thick coating of heat resistant nitrile rubber on both sides. OEM replacement reference none. Note: Type A'' gasket explained: Type A'' was introduced on the 1984 Evolution Big Twin models; and can be used on all of the 84-99 1340cc Evo models and will follow the contours of the cylinder base perfectly. They will fit 86-22 Evo XL; but stick out at the cylinder base. This can be a problem with silicone beaded base gaskets. Both type ''A'' and type ''B'' have identical inner bore diameter; oil hole and stud hole locations. Gaskets for front & rear cylinder are identical. Only difference between the ''A'' & ''B'' gaskets is the outside perimeter.
