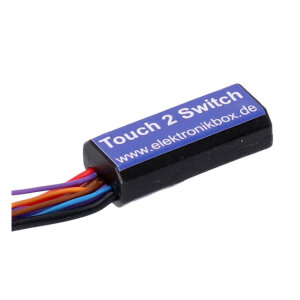

Axel Joost Elektronik, Touch 2 Switch. 2 channel relay

Axel Joost Elektronik, Touch 2 Switch. 2 channel relay

Artikelnummer: 954137
Kategorie: Schalter & Taster
Hersteller: ELEKTRONIKBOX

| Artikelzustand: NEU

55,95 €

inkl. 19% USt. , zzgl.

Auswahl Steuerzone / Lieferland

Sofort verfügbar
Lieferzeit: 2 - 5 Werktage (DE - Ausland abweichend)

Beschreibung

Perfect to switch lights high-low; on-off; ignition on-off; handlebar grip heating etc. This Axel Joost Touch 2 Switch is a 2 channel power relay that is controlled by 2 momentary push buttons. Every press on a button will toggle the corresponding output between on and off; no matter if they are wired to plus or minus. Or use the module as a standard (low beam /high beam) headlamp relay. Just wire the 2 thin input cables together to one push button. The first press on the push button will switch on output 1 (low beam). Every further press on the button toggle the between 2 outputs. The outputs can handle 70 Watt peak and 50 Watt continuous load. The module fits inside almost every handlebar due to its small size. - 2 channel relay - Pushbutton controlled on-off switching - Dimensions: 38 mm x 16 mm x 11 mm - Body material: ABS with waterproof poured 2k epoxy resin - Input voltage range: 6 - 18 Volt - Connections: Inputs 0.14 mm�; Outputs 0.75 mm� - Maximum current: 7 Ampere / 70 Watt p
