Grey mounting bracket 2-3-4-6-12 pole re (GB)

Grey mounting bracket 2-3-4-6-12 pole re (GB)

Artikelnummer: ZO741541-GB
Kategorie: ZO-ARTIKEL-ENGLAND
Hersteller: Deutsch Connectors

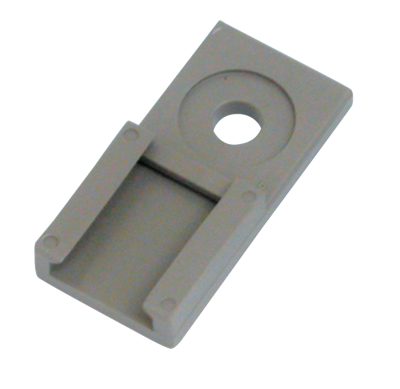

Mounting brackets for Deutsch Connectors These mounting brackets slip Into the guide on the receptacle for a perfect ficture of the connector on the frame. Brackets can be screwed or glued onto the frame., Grey mounting bracket 2-3-4-6-12 pin receptacle. | Item condition: NEW

2,15 €

inkl. 19% USt. , zzgl.

Alter Preis: 2,49 €

Auswahl Steuerzone / Lieferland

Knapper Lagerbestand
Lieferzeit: 2 - 5 Werktage (DE - Ausland abweichend)

Bei diesem Artikel ist die Stückzahl teilbar (z. B. 0,5).

Beschreibung

The greatest invention since electric cables! Ideal for custom wiring or as replacement on OEM wiring harnesses. Best proof of the quality from these connectors is that many OEM manufacturers including the Factory in Milwaukee use them. Our wide variety of components leaves nothing else to wish for. The waterproof connectors feature a special design lock-up system to secure the connectors and avoid accidental separation. Available for 2, 3, 4, 6, 8 and 12 pin connectors. All parts to make up a complete connector have to be ordered separately.

For example you want to connect 5 cables, in order to do this you need:
1x6 Pin receptacle ZPN741519
1x6 Pin plug ZPN741522
1xWedge for 6 pin plug ZPN741523
1xWedge for 6 pin receptacle ZPN741520

Pin and socket contacts are available for 0.5-1.0mm² or 1.0-2.0mm² wires

For 0.5-1.0mm² wires:
5xSingle pin contact ZPN741536
5xSingle socket contact ZPN741537

For 1.0-2.0mm² wires:
5xSingle pin contact ZPN741538
5xSingle socket contact ZPN741539

Note: This is just an example. If a different number of wires is used, a different combination of component is used.
