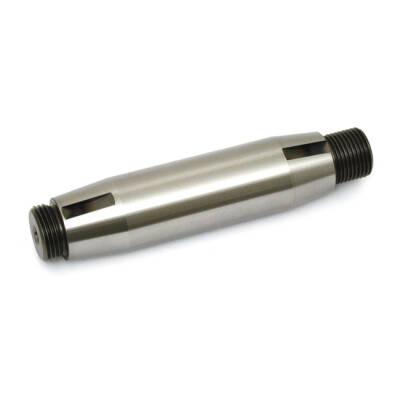

JIMS, sprocket shaft. 30-54 B.T.

Artikelnummer: 509620
Kategorie: Zubehoer f. Motoren
Hersteller: JIMS

30-54 OHV Big Twin and 37-48 74"/80" Flatheads (NU) | Artikelzustand: NEU

123,95 €

inkl. 19% USt. , zzgl.

Auswahl Steuerzone / Lieferland

Sofort verfügbar
Lieferzeit: 2 - 5 Werktage (DE - Ausland abweichend)

Bei diesem Artikel ist die Stückzahl teilbar (z. B. 0,5).

Beschreibung

Sprocket shaft has keyway; use 23985-12 key (MCS 517945). Use 24023-36 JIMS nut (MCS 978258) on flywheel side and use 24003-30 nut (MCS 518561) on sprocket side. JIMS shafts are precision machined in Camarillo; California from a special order steel. Each and every part is thoroughly inspected and after heat treating all threads go through a special process to make them withstand greater torque stress. All shafts are ground to a 16 micron finish or better; unless specified otherwise. All ground diameters are concentric to well within .0003"; making truing and rebuilding quicker and with less effort.
