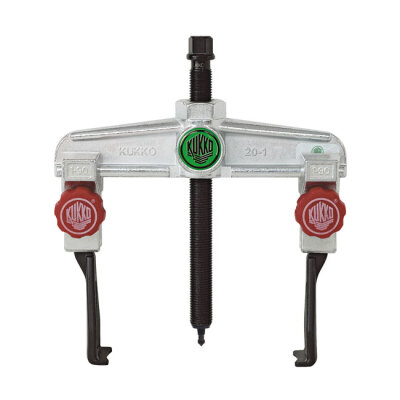

Kukko, gear puller with 2 quick adjusting arms. Narrow

Artikelnummer: 951005
Kategorie: Werkzeug & Zubehoer
Hersteller: Kukko

| Artikelzustand: NEU

170,95 €

inkl. 19% USt. ,

Auswahl Steuerzone / Lieferland

Sofort verfügbar
Lieferzeit: 2 - 5 Werktage (DE - Ausland abweichend)

Bei diesem Artikel ist die Stückzahl teilbar (z. B. 0,5).

Beschreibung

Narrow adjusting arms. Gear pullers with the ''quick adjusting arms'' allow sliding the jaws along the cross-beam to the required diameter; between 70 and 140mm; for a straight pull. Optional 150mm ''jaw extensions'' are available for additional jaw reach when required. Jaws can be reversed which allows both internal as external pulling actions. - Number Of Jaws: 2 - Build series: 20 - Puller arms look like: Drawing 2 - Spread (in mm): 30-90 - Depth (in mm): 100 - Spread Used Internal (in mm): 70-140 - Hex Drive (Male) (in mm): 17 - Maximum Load: 2500kg - Maximum Torque: 35Nm - Weight: 1.27kg - Space Below (in mm): 2.6 - Space Next To It (in mm):14. Technologies used: - Switch: A two-sided spindle tip provides optimal adjustment of the spindle to the shaft - Glide & Fix: Improved geometry guarantees quick and easy movement of the jaws on the cross-beam - Armlock: Cross-legged jaws guarantee maximum stability for suspending the jaws in the slider - Quick Adjust: Knurls
