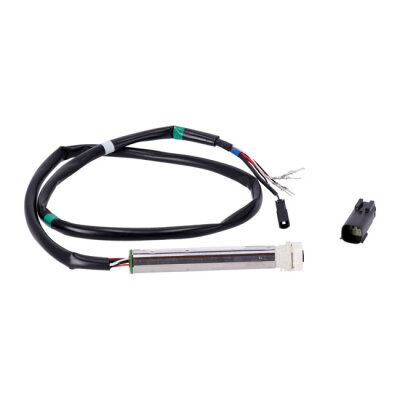

Namz, twist grip sensor for Throttle-by-Wire models

Namz, twist grip sensor for Throttle-by-Wire models

Artikelnummer: 958050
Kategorie: Elektrik - Zubehoer
Hersteller: NAMZ

08-13 H-D with e-throttle (NU) | Artikelzustand: NEU

181,95 €

inkl. 19% USt. ,

Auswahl Steuerzone / Lieferland

Sofort verfügbar
Lieferzeit: 2 - 5 Werktage (DE - Ausland abweichend)

Bei diesem Artikel ist die Stückzahl teilbar (z. B. 0,5).

Beschreibung

Plug & play replacement throttle sensor for models with e-throttle (electronic throttle). - Hardwired like OEM CVO versions from the sensor to the main connection on the harness - Terminals are pre-installed using MIL-SPEC crimping presses - Includes OEM (HD# 72188-07BK) male 6-position connector for installation after the harness is routed through the handlebar - Includes installed OEM (HD# 72902-01BK) male 2-position heated grip connection - NOTE: be sure that your grip is mated snugly against the gear drive to prevent damage - The male connector is NOT installed so you can fish the wiring harness through your handlebar - Connector Pinout: 1 (black); 2 (white); 3 (red); (Blue tape around bundle) 4 (black); (Blue tape around bundle) 5 (white); (Blue tape around bundle) 6 (red).
