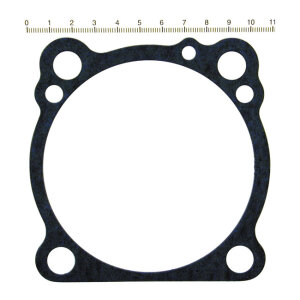

James gaskets, cylinder base. FR/RR .020" paper

James gaskets, cylinder base. FR/RR .020" paper

Artikelnummer: 920860
Kategorie: Motor-Dichtungen
Hersteller: JAMES GASKETS

84-99 Evo Big Twin; 86-22 XL Sportster (Excl. 08-12 XR1200) (NU) | Artikelzustand: NEU

28,95 €

inkl. 19% USt. , zzgl.

Auswahl Steuerzone / Lieferland

Sofort verfügbar
Lieferzeit: 2 - 5 Werktage (DE - Ausland abweichend)

Bei diesem Artikel ist die Stückzahl teilbar (z. B. 0,5).

Beschreibung

'Type B''. Front/rear. .020" thick fiber reinforced paper. Final crush .016". OEM replacement reference 16774-86D; 16789-04. Note: Type ''A'' and ''B'' Evolution base gaskets explained. There are 2 types of cylinder base gaskets for Evolution models available. For convenience sake we call them ''type A'' (early style) and ''type B'' (late style). - Type A'' gasket: Was introduced on the 1984 Evolution Big Twin models; and can be used on all of the 84-99 1340cc Evo models and will follow the contours of the cylinder base perfectly. They will fit 86-22 Evo XL; but stick out at the cylinder base. This can be a problem with silicone beaded base gaskets.- Type B'' gasket: Was introduced on Evolution XL Sportster models in 1986; and will fit all Evo XL models; but also all 84-99 Evo 1340cc models although the Big Twin cylinder base is a bit larger than the gasket. The ''type B'' is the only gasket type that ''The Factory'' supplied from 1986 onwards for both Evo Big Twin and Evo XL Sportster
