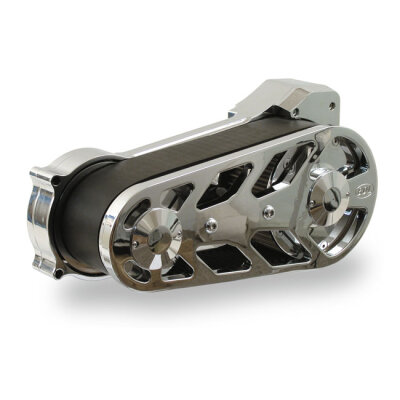

BDL, TF2000 series 3-3/8" Top Fuel/Street Drive, outboard

BDL, TF2000 series 3-3/8" Top Fuel/Street Drive, outboard

Artikelnummer: 518685
Kategorie: Primaerantriebe
Hersteller: Belt Drives Ltd.

90-06 5-speed Softail (NU) | Artikelzustand: NEU

3.990,00 €

inkl. 19% USt. ,

Auswahl Steuerzone / Lieferland

Sofort verfügbar
Lieferzeit: 2 - 5 Werktage (DE - Ausland abweichend)

KIT

Bei diesem Artikel ist die Stückzahl teilbar (z. B. 0,5).

Beschreibung

The Monster Drive! With outboard bearing for additional clutch support. This is an all billet complete 3-3/8" (85mm) wide primary belt drive kit; including clutch. It uses the same 85mm wide belt with 14mm pitched tooth as used on 600+ horsepower top fuel Harley dragsters. The clutch consists of 9 6-3/8" diameter Aramid friction plates and 11 steels. Uses up to 9 clutch springs to adjust spring pressure to accommodate any size monster motor on the market. Come with an oil filter mount in the motor plate. 46-30 tooth drive ratio. Note: The outboard support plate of this kit is inside-outside reversible. The backside is channeled for a different look when desired; but only the front side is polished. 46-30 tooth drive ratio. Note: See 518686 for the replacement 85mm wide (3-3/8"); 85 tooth; 14mm pitch belt.
