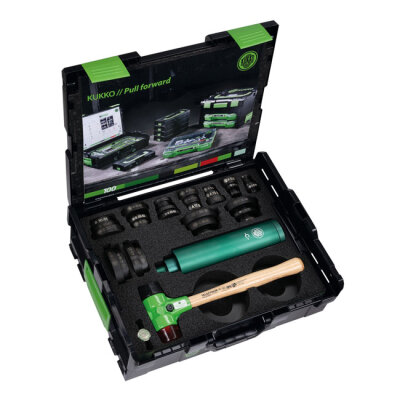

Kukko, bearing installation kit

Artikelnummer: 951096
Kategorie: Werkzeug & Zubehoer
Hersteller: Kukko

| Artikelzustand: NEU

1.425,00 €

inkl. 19% USt. ,

Auswahl Steuerzone / Lieferland

Sofort verfügbar
Lieferzeit: 2 - 5 Werktage (DE - Ausland abweichend)

KIT

Bei diesem Artikel ist die Stückzahl teilbar (z. B. 0,5).

Beschreibung

Used for bearing installation. Bearing fitting tool kit for quick; precise and secure installation of bearings and seals without damage to bearings; seals or housing. - Build Series: 71-L - Inside Diameter of bearing: 10mm to 50mm - Outside Diameter of bearing: 26mm to 110mm - Number of Impact Sleeves: 3 - Diameter of Impact Sleeves: 19/32/50mm - Length of Impact Sleeve: 220mm - Number Of Rings: 33 - The correct combination of impact ring and impact sleeve for a ball bearing are found in the table inside the case cover - The axes; bearing casings and gaskets of the bearing will not be damaged - The impact rings have a rubber ring and ensure locking at the strike pipes - With the combination of the impact ring and the impact pipe; the installation forces are never directed through the rolling elements of the bearing - Comes complete with sturdy carrying case.
